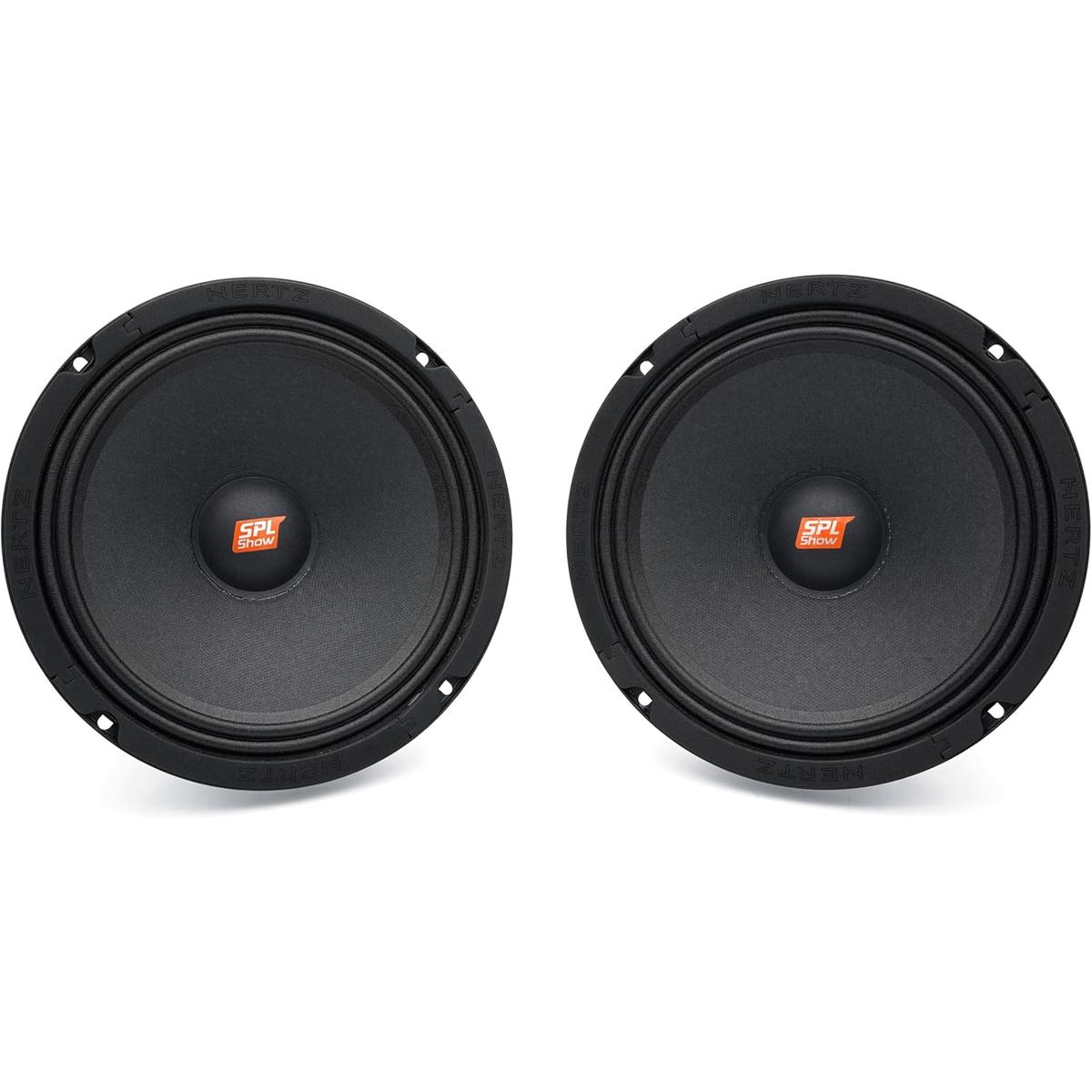

Hertz SPL Show Series SV-2001 8 in. (200mm) SPL 4-Ohm Midrange Speakers (Pair)

The SV 200.1 car audio midrange is the 200 mm (8 in.) midrange designed for SPL competitions. Like the SX subwoofers, the SV 200.1 features a solid, robust structure and, like all the other SPL Show components, it employs a copper voice coil wound on a two-layer KSV former, for unheard-of thermal and mechanical capability also in extreme circumstances. The cone features a water repellent pressed paper membrane and paper dust caps, both robust and light weight, as well as double-wave damped fabric surrounds to ensure linearity even under extreme conditions, contributing to high SPL scores.

Features –
High magnetic permeability plates provide constant, even flux.
High density flux ferrite magnet, for top SPL performance.
Double layer copper voice coil, wound on KSV former; for excellent thermal and mechanical capability.
High current, tin-plated terminals.
Damped fabric surround; for maximum lightness and extreme SPL.
Water-repellent, pressed paper cone.
Specifications –
Size mm (in.): 200 (8)
Power Handling – Peak W: 500
Impedance Ω: 4
Frequency response Hz: 100 ÷ 9k
Sensitivity dB SPL: 100
Voice coil Ø mm (in.): 38 (1.5)
Magnet: High density flux ferrite
Cone/Dome: Ultra light pressed paper
